Products – Skip-Containers

for Chain-Loader-Trucks – open top

1. Manufactured according to DIN 30720 or local standard
2. Welded inside and outside
3. Bottom plate 6 mm
4. Side wall plate 4 mm
5. Top frame beams cold rolled profile U-Channel
6. Edges double welded
7. Triple-tipping device on both sides
8. Set of net hooks welded all around
9. Primed and coated in RAL colour of your choice

Quality marks

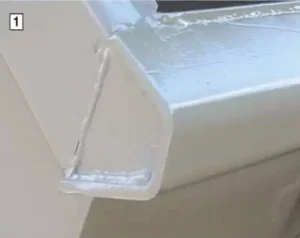

     Wear resistant tipping profile

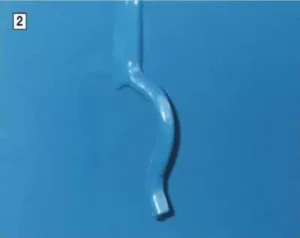

     Strong net hooks for load safetly

     Triple tipping device

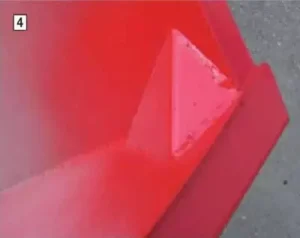

     Edges reinforced

Products – Skip-Containers

for Chain-Loader-Trucks – covered with steel lid

1. Manufactured according to DIN 30720 or local standard
2. Welded inside and outside
3. Bottom plate 6 mm
4. Side wall plate 4 mm
5. Top frame beams cold rolled profile U-Channel
6. Edges double welded
7. Triple-tipping device on both sides
8. Set of net hooks welded all around
9. Primed and coated in RAL colour of your choice

Quality marks

     Wear resistant tipping profile

     Strong net hooks for load safetly

     Triple tipping device

     Edges reinforced

Products – Skip-Containers

for Chain-Loader-Trucks – covered with plastic lid

1. Manufactured according to DIN 30720 or local standard
2. Welded inside and outside
3. Bottom plate 6 mm
4. Side wall plate 4 mm
5. Top frame beams cold rolled profile U-Channel
6. Edges double welded
7. Triple-tipping device on both sides
8. Set of net hooks welded all around
9. Primed and coated in RAL colour of your choice

Quality marks

     Wear resistant tipping profile

     Strong net hooks for load safetly

     Triple tipping device

     Edges reinforced

Products – Skip-Containers

for Chain-Loader-Trucks – REL

1. Manufactured according to DIN 30720 or local standard
2. with REL system (hook & bolts)
3. Welded inside and outside
4. Bottom plate 4 mm
5. Side wall plates 3 mm
   1. 2 fork lift pockets on each side
6. Set of net hooks welded all around
7. Primed and coated in RAL colour of your choice

Products – Skip-Containers

for Chain-Loader-Trucks – with crane hooks

• Certified type
•

   Heavy duty crane hook

   with CE-Sticker and proof certificate

   Variation asymmetric

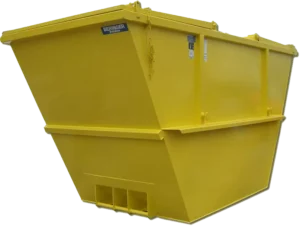

Products – Skip-Containers

for Chain-Loader-Trucks – covered sludge type

1. According to DIN 30720
2. Welded inside and outside
3. Bottom plate 8 mm
4. Side wall plates 6 mm
5. Triple tipping device on both sides
6. Set of net hooks welded all around
7. Primed and coated in RAL colour of your choice

Products – Skip-Containers

for Chain-Loader-Trucks – open top with additional bolts – standard type

1. manfactured according to DIN 30720 or local standard
2. with REL system (hook and bolts)
3. Welded inside and outside
4. Bottom plate 6 mm
5. Side wall plates 4 mm
6. triple tipping device on both sides
7. set of net hooks welded all around
8. with reflection stickers red/white
9. primed and coated in RAL colour of your choice
